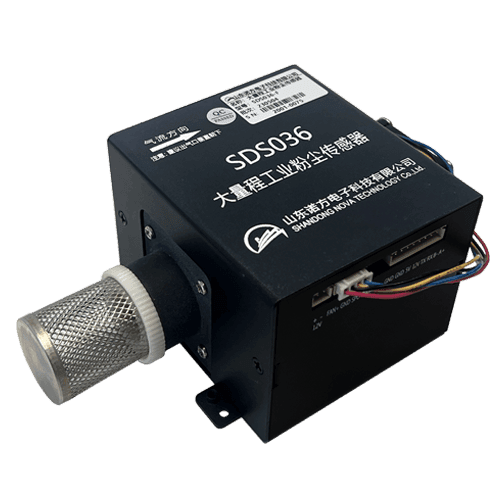

NovaSensor SDS036 large range industrial dust sensor is a large range dust detection sensor based on the principle of laser scattering, which can measure the mass concentration of large particle size particles.
NovaSensor SDS036 large-scale industrial dust sensor is based on innovative gas path optical path separation and side flow sampling design, mainly used in high pollution and high concentration dust monitoring occasions.
NovaSensor SDS036 large-scale industrial dust sensor transmits real-time dust particle data to various intelligent terminals through standard RS485 interface and Modbus RTU protocol for industrial field measurement and remote monitoring.
● Pollutant-resistance: Air path optical path separation design, greatly improve the anti fouling ability
● Precise operation: All industrial devices, carefully adjust the optical and air structure, high precision
● Reliable operation: Designed for high concentration environment, strong anti-pollution ability
● Easy integration: Small size, using standard communication protocol, easy integration
● Circuit protection: Over current, over voltage, anti-reverse connection protection,485 lightning protection
Nova SDS036 large-scale industrial dust sensor is suitable for high pollution dust detection scenarios such as coal mines, flour mills, mines, cement plants, power plants, factories, workshops, etc.
| NO. | Project | Parameter | Notes |
| 1 | Range | 0~1000mg/m³ | |
| 2 | Measuring output | TSP | |
| 3 | Power supply | DC12V[9~25VDC] | Power supply≥12V2A |
| 4 | Power | 1.2W | |
| 5 | Temp.Range | -20℃~60℃ | |
| 6 | Humidity range | 0~99%RH | |
| 7 | Working AP | 86KPa~110KPa | |
| 8 | Interface | RS485+UART TTL | |
| 9 | Protocol | Modbus-RTU | |
| 10 | Lifetime | 3 years | Below 40℃ |
| 11 | Relative error | ±20%&±100μg/m³MAX | @25℃,50%RH |
| 12 | Esponse time | 1S | |
| 13 | Size | 125*100*66mm |
