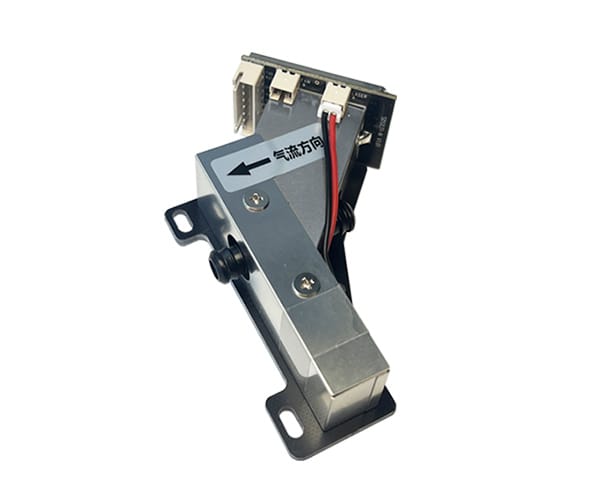

NovaSensor SDS031 online monitoring oil fume sensor is a high range oil fume concentration online monitoring device based on the principle of laser scattering, which supports dual scenario use of oil fume and dust. Based on innovative design of air and light path separation, it is mainly applied in situations with high concentration of particulate matter pollution such as dust, smoke, soot, and oil fume.
NovaSensor SDS031 online monitoring oil fume sensor has a compact core size, good air tightness, and is easy to develop and integrate. It can be installed in oil fume online monitoring equipment to transmit real-time detection data to various intelligent terminals, including computers, for on-site and remote monitoring.
● Air path and optical path separation design, greatly improve the anti-fouling operation ability
● Built-in dual parameters, support for smoke and dust scenarios dual scenarios
● Compatible with SDS198
● Industrial laser and fan, stability improvement
● Product serialization, support a variety of integration methods (kernel, machine)
● Signal processing upgrade, good data linearity
Nova SDS031 Oil Fume Particle Sensor can be widely used in high pollution scenarios such as coal mines, flour mills, mines, cement plants, power plants, construction sites, workshops, catering oil fume industries, as well as other occasions that require smoke detection
| NO. | Project | Parameter | Notes | |||

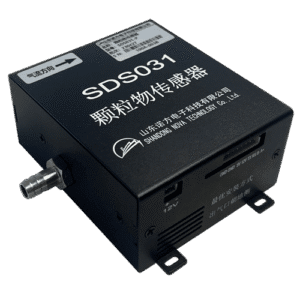

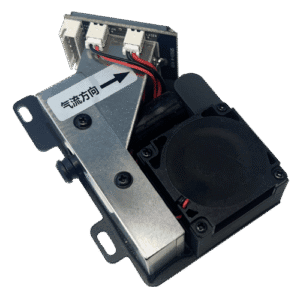

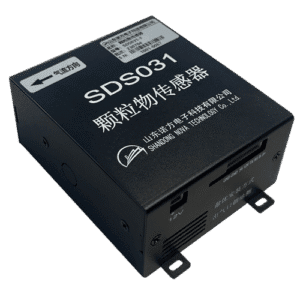

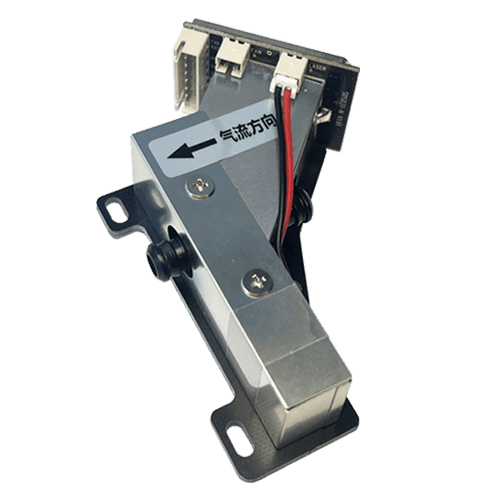

| SDS031-NP | SDS031-NF | SDS031-P | SDS031-F | |||
| 1 | Range | Dust:0~100mg/m³ Mist:0~20 mg/m³ | ||||
| 2 | Measuring output | TSP quality concentration Oil fume quality concentration | ||||
| 3 | Power supply | DC12V [9~25VDC] | Power supply≥12V2A | |||
| 4 | Temp.Range | -20~60℃ | ||||
| 5 | Humidity range | 0~99%RH | ||||
| 6 | Working AP | 86KPa~110KPa | ||||
| 7 | Protocol | Modbus-RTU | ||||
| 8 | Lifetime | 3 years | Below 40℃ | |||
| 9 | Relative error | ±20%&±100μg/m³MAX | @25℃,50%RH | |||
| 10 | Esponse time | 1S | ||||
| 11 | Power | 0.5W | 0.5W | 1W | 1W | |
| 12 | Interface | UART TTL | UART TTL | RS-485+UART TTL | RS-485+UART TTL | |
| 13 | Size | 92*61*29mm | 92*67*31mm | 111.5*82.8*44mm | 111.5*82.8*44mm | |
| 14 | Sampling method | Pump | Fan | Pump | Fan | |
