● Accurate data: laser detection, reliable
● Fast response: Data update frequency is 1 Hz
● Easy integration: Serial port output (or 10 port output can be customized), comes with a fan
● High resolution: The minimum diameter of the resolution of the particles reaches 0.3 μm
● Standard authentication: CE/FCC/RoHS certification

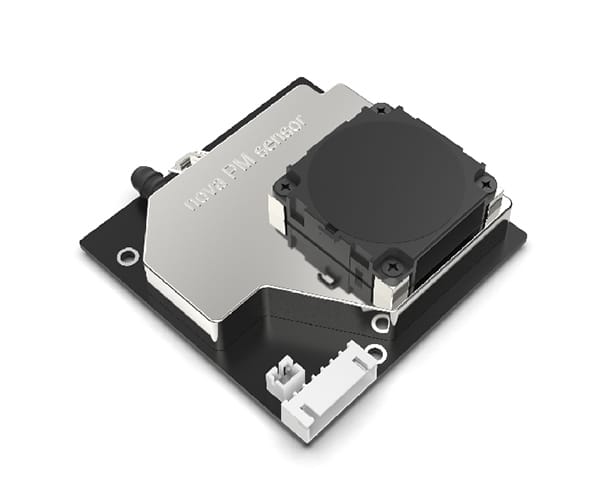

Nova SDS011 dust particle sensor is suitable for indoor monitoring and dust monitoring, and can be installed in PM2.5 detectors, purifiers, and micro air stations.
| NO. | Project | Parameter | Notes |
| 1 | Measuring output | PM2.5、PM10 | |
| 2 | Range | PM2.5:0.0~1000.0μg/m³ PM₁ :0.0~2000.0μg/m³ | |
| 3 | Rated voltage | 5V | |
| 4 | Rated current | 90mA±10mA | |
| 5 | Sleep current | <4mA | Laser and fan stop working |
| 6 | Temp.Range | Storage environment:-20~60℃ Work environment:-10~50℃ | |
| 7 | Humidity range | Storage environment:Maximum 90%RH Work environment:Maximum 70%RH | |
| 8 | Esponse time | 1S | |
| 9 | Working AP | 86KPa~110KPa | |
| 10 | Minimum resolution particle size | 0.3μm | |
| 11 | Counting efficiency | 70%@0.3μm 98%@0.5μm | |
| 12 | Relative error | ±15%&±10μg/m³MAX | @25℃,50%RH |
| 13 | Product size | 71*70*23mm |
